Depth Estimation with Neural Nets

Depth Estimation from 2D Monocular RGB Images using Serial U-Nets

Depth Estimates from 2D RGB Images from KITTI Dataset

Knowledge of environmental depth is required for successful autonomous vehicle navigation and VSLAM. Current autonomous vehicles utilize range-finding solutions such as LIDAR, RADAR, and SONAR that suffer drawbacks in both cost and accuracy. Vision-based systems offer the promise of cost-effective, accurate, and passive depth estimation to compete with existing sensor technologies.

Existing research has shown that it is possible to estimate depth from 2D monocular vision cameras using convolutional neural networks. Recent advances suggest that depth estimate accuracy can be improved when networks used for supplementary tasks such as semantic segmentation are incorporated into the network architecture.

Recently, Kyle Cantrell, Dr. Carlos Morato, and I published a paper exploring a novel Serial U-Net (NU-Net) architecture. The Serial U-Net is introduced as a modular, ensembling technique for combining the learned features from N-many U-Nets into a single pixel-by-pixel output. Serial U-Nets are proposed to combine the benefits of semantic segmentation and transfer learning for improved depth estimation accuracy.

Using the Serial U-Net architecture, we were able to create some pretty cool 3D reconstructions from a single RGB image:

3D Reconstruction from Single RGB Image

All of our code is freely available on GitHub. You can use our pre-trained network on an existing video or a live webcam feed. And of course, you can also train the network on your own dataset of RGB and depth image pairs (similar to what is found in the NYU Depth V2 or KITTI datasets). 3D reconstruction MATLAB code is available here.

If you’re interested, you can find the full paper here.

Transformation Matrices for Robotic Arms

Python functions for serial manipulators.

# -*- coding: utf-8 -*-
Functions for calculating Basic Transformation Matrices in 3D space.
from math import cos, radians, sin
from numpy import matrix

def rotate(axis, theta, angular_units='radians'):
    '''Compute Basic Homogeneous Transform Matrix for
    rotation of "theta" about specified axis.'''
    #Verify string arguments are lowercase
    #Convert to radians if necessary
    if angular_units=='degrees':
    elif angular_units=='radians':
        raise Exception('Unknown angular units.  Please use radians or degrees.')
    #Select appropriate basic homogenous matrix
    if axis=='x':
        rotation_matrix=matrix([[1, 0, 0, 0],
                               [0, cos(theta), -sin(theta), 0],
                               [0, sin(theta), cos(theta), 0],
                               [0, 0, 0, 1]])
    elif axis=='y':
        rotation_matrix=matrix([[cos(theta), 0, sin(theta), 0],
                               [0, 1, 0, 0],
                               [-sin(theta), 0, cos(theta), 0],
                               [0, 0, 0, 1]])
    elif axis=='z':
        rotation_matrix=matrix([[cos(theta), -sin(theta), 0, 0],
                               [sin(theta), cos(theta), 0, 0],
                               [0, 0, 1, 0],
                               [0, 0, 0, 1]])
        raise Exception('Unknown axis of rotation.  Please use x, y, or z.')
    return rotation_matrix

def translate(axis, d):
    '''Calculate Basic Homogeneous Transform Matrix for
    translation of "d" along specified axis.'''
    #Verify axis is lowercase
    #Select appropriate basic homogenous matrix
    if axis=='x':
        translation_matrix=matrix([[1, 0, 0, d],
                                  [0, 1, 0, 0],
                                  [0, 0, 1, 0],
                                  [0, 0, 0, 1]])
    elif axis=='y':
        translation_matrix=matrix([[1, 0, 0, 0],
                                  [0, 1, 0, d],
                                  [0, 0, 1, 0],
                                  [0, 0, 0, 1]])
    elif axis=='z':
        translation_matrix=matrix([[1, 0, 0, 0],
                                  [0, 1, 0, 0],
                                  [0, 0, 1, d],
                                  [0, 0, 0, 1]])
        raise Exception('Unknown axis of translation.  Please use x, y, or z.')
    return translation_matrix

if __name__=='__main__':
    #Calculate arbitrary homogeneous transformation matrix for CF0 to CF3
    H0_1=rotate('x', 10, 'degrees')*translate('y', 50)
    H1_2=rotate('y', 30, 'degrees')*translate('z', 10)
    H2_3=rotate('z', -20, 'degrees')*translate('z', 10)

Also available on GitHub.

Time-lapse Camera with Raspberry Pi

Building a Time-lapse Camera with Raspberry Pi.

Recently I built a time-lapse camera with a Raspberry Pi.  Here’s how:

Bill of Materials

  1. Raspberry Pi 3
  2. Power Supply
  3. Camera Mount
    • This ended up having a slightly different mounting hole pattern than the Arducam.
  4. Arducam Camera

During initial setup, you’ll also want to have a HDMI Cable, Keyboard, Mouse, and Monitor for your Pi.


  1. Fasten the Arducam to the camera mount.
  2. Connect the Arducam ribbon cable to the Pi’s CSI port.
  3. Download the python code.
    • Update start time, end time, and sleep interval as desired.
  4. (Optional) Update rc.local as mentioned below.


from time import sleep
from picamera import PiCamera
from datetime import datetime


def day_or_night(datetime):
        return 'day'
        return 'night'
def take_picture():
    label='timelapse_' + now + '.jpg'
    print('Image captured at '+now)
if __name__=='__main__':
    camera = PiCamera()
    while True:
        if day_or_night(now) is 'day':
		sleep(900) #15 minutes

Also on GitHub.  I was able to get the code to execute upon startup by updating the Pi’s rc.local file.  I followed the rc.local method shown here.

The images are saved in /home/pi/Pictures/ on the Pi.  I used ImageMagick to create the GIF of the plant shown above.

Future Improvements

  • Saving the files to Google Drive to avoid file storage limitations.  Also, you can view the images without disturbing the camera system.  Looks like this article points us in the right direction.
  • Utilizing a portable power supply.

Building a Superflight Controller

Building a controller for Superflight with Arduino, PySerial, and a Wii Nunchuk.


A few months ago, I downloaded Superflight on Steam.  It’s an awesome game.

I thought it might be fun to play with a a joystick, but I didn’t have one… so I hacked one together with an Arduino Mega, an old Wii Nunchuk, and PySerial.  The controller works by using the Arduino as an interface between the Nunchuk and computer (via USB) which allows our Python code to read & interpret the Nunchuk data and simulate keystrokes in the game.  The entire hardware configuration and most of the code I needed was already generously available from Gabriel Bianconi’s Makezine article and Chris Kiehl’s Virtual Keystroke project.

The only real hardware change I made was the Arduino pin locations.  For me on an Arduino Mega 2560, this was SDA: Pin 20 and SCL: Pin 21.

In the Arduino code from Bianconi’s article, I modified the Baud rate from 19200 to 9600.  This seemed to be more stable for me, but I’m not sure if it was entirely necessary.  Regardless of what rate you select, make sure the Baud rate matches in the Arduino and Python code.

I pruned a lot of the Nunchuk gyroscopic readings out of Bianconi’s Python code.  Then I added the VK_CODE dictionary (partial) and “press” function from Chris Kiehls’ project which takes advantage of the win32api to simulate keystrokes on a Windows machine.  Finally, I modified some of the existing logic to “press” the arrow keys when the Wii joystick was moved in the corresponding direction.  My python code ended up looking like this:

Building a Superflight Controller with a Wii Nunchuk

Note: Must run with Python 2.

# Import the required libraries for this script
import string, time, serial, win32api, win32con

#Dictonary to hold key name and VK value
VK_CODE = {'left_arrow':0x25,

#press keys
def press(*args):
    one press, one release.
    accepts as many arguments as you want. e.g. press('left_arrow', 'a','b').
    for i in args:
        win32api.keybd_event(VK_CODE[i], 0,0,0)
        win32api.keybd_event(VK_CODE[i],0 ,win32con.KEYEVENTF_KEYUP ,0)

# The port to which your Arduino board is connected
port = 'COM3'

# Invert y-axis (True/False)
invertY = False

# The cursor speed
cursorSpeed = 20

# The baudrate of the Arduino program
baudrate = 9600

# Variables indicating whether the mouse buttons are pressed or not
leftDown = False
rightDown = False

# Variables indicating the center position (no movement) of the controller
midAnalogY = 130
midAnalogX = 125

if port == 'arduino_port':
    print('Please set up the Arduino port.')
    while 1:

# Connect to the serial port
ser = serial.Serial(port, baudrate, timeout = 1)

# Wait 5s for things to stabilize

# While the serial port is open
while ser.isOpen():

    # Read one line
    line = ser.readline()

    # Strip the ending (\r\n)
    line = string.strip(line, '\r\n')

    # Split the string into an array containing the data from the Wii Nunchuk
    line = string.split(line, ' ')


    # Set variables for each of the values
    analogX = int(line[0])
    analogY = int(line[1])
    zButton = int(line[5])


    # If the analog stick is not centered

# After the program is over, close the serial port connection

To summarize, the overall process looks something like this:

  1. Connect the Wii Nunchuk to the Arduino as shown in the Makezine article.  Make sure you wire the Nunchuk to your SDA and SCL pins – these might be different that what’s shown in the article depending on what Arduino model you have.
  2. Connect the Arduino to your computer through USB and upload Bianconi’s Arduino sketches.  Take note of what baud rate you’re using.
  3. Save the python code (shown above) to your local machine.  Update the baud rate as needed – make sure it’s the same as what is listed in your Arduino code.  Make sure you have all python library dependencies installed.
  4. Open a terminal.  CD to whatever directory you saved the python code to.  Run the .py file using Python 2.  If you attempt to run it with Python 3, it probably won’t work.
  5. Open Superflight and have fun.

A few closing thoughts:

  • The overall setup is still a little bit unstable.  The python code seems to crash after a few minutes.  A few parameters to troubleshoot with are the threshold variable, the sleep duration, and the baud rate.
  • A definite improvement would be to make the Nunchuk trigger buttons work in the menu for a more complete controller.  But the keyboard still works.
  • Another big improvement would be to re-write the python code to use a variable rate of virtual button-pressing based on how far from the origin the controller is.
  • For a more long-term hardware design, we could design & 3D-print an enclosure that houses an ATtiny which runs the Arduino code.  From the outside, it would just look like a Nunchuk-to-USB cable.
  • Maybe it would have been more interesting to use the Wii Gyro data instead of the joystick?


Web Scraping for Engineers

Scrape 3D models from McMaster-Carr with Python & Selenium.

Here is a script for fetching 3D models from McMaster-Carr using Selenium.

Make sure Chromedriver is in the same directory as your .py file.  The 3D models will be downloaded to your default Downloads directory.

# -*- coding: utf-8 -*-
Scrape 3D models from McMaster-Carr.

Requirements: Chromedriver.exe is in the same folder as this script.
from selenium import webdriver
import time

test_part_numbers=['98173A200', '7529K105', '93250A440']

def fetch_model(part_numbers, delay=3):
    if type(part_numbers) is str:
    #Start browser
    options = webdriver.ChromeOptions()
    driver = webdriver.Chrome(chrome_options=options)
    #For each part number
    for part_number in part_numbers:
        driver.get('' + str(part_number) + '/')
        #Pause for page to load
        #Find and Click submit button
            print('No button found or other error occured')

Capture Hard Drive Folder Structure with Python

Use glob and pandas to create a snapshot of any computers current folder structure.

Suppose we want to grab the folder structure of a computer without backing up every single file. Maybe we want to index the folder structure, maybe find all of the .py files scattered across our computer, or we want to take a look at all of the files/folders that exist on another computer.  Here we’ll capture the contents (all files and folders) of our input folder, along with the contents of every sub-folder.



To begin, we’ll define a few functions:

def FileOrFolder(filepath):
    if "." in filepath:

def StillFolders(dfcolumn):
    for item in dfcolumn:
        if item=='Folder':
    if FolderCount>0:
        return('Still Folders')
        return('No Folders')

We’ll want to continue looping through each sub-folder (and their sub-folders) until there are no more folders to look in. “FileOrFolder” identifies whether a given filepath is a File or Folder. “StillFolders” looks in a single column of a DataFrame and identifies whether or not any Folders are remaining.

def find_contents(folderpath):
    #Find contents of intial input
    contents=pd.DataFrame(glob.glob(folderpath + '*'),columns=[('Path')])
    return contents

The “find_contents” function uses glob to find all of the contents of a given folderpath. The contents is returned as a DataFrame.

In order to find all lower-level files and folders, we’ll write a short procedure to continue identifying the contents of sub-folders while the previous “order” folder still contains folders. So the full code will look something like this:

# -*- coding: utf-8 -*-
Purpose: Returns all Folders and Files in a parent folder with hierarchical order.

Input: A folderpath.
Output: An excel file with four columns
            A. Index - Integer.
            B. Path - String.
            C. FileOrFolder - String.
            D. Order - Integer.  "0" is the input folderpath.
import glob
import pandas as pd
from tkinter import Tk
from tkinter import filedialog


def FileOrFolder(filepath):
    if "." in filepath:

def StillFolders(dfcolumn):
    for item in dfcolumn:
        if item=='Folder':
    if FolderCount>0:
        return('Still Folders')
        return('No Folders')

def find_contents(folderpath):
    #Find contents of intial input
    contents=pd.DataFrame(glob.glob(folderpath + '*'),columns=[('Path')])
    return contents

folder=filedialog.askdirectory(initialdir=r'C:\\',title='Please select folder')



while StillFolders(all_levels[level-1]['FileOrFolder'])=='Still Folders':
    for index, row in all_levels[level-1][all_levels[level-1]['FileOrFolder']=='Folder'].iterrows():
        all_levels[level]=all_levels[level].append(find_contents(row['Path'] + '\\'),ignore_index=True)

#Concatenate all dataframes in all_levels
combined_all_levels=pd.concat([all_levels[level] for level in all_levels])
#Save to excel on one sheet

Our output is temporarily stored as a dictionary of DataFrames, which we then concatenate into a single DataFrame, and then finally use to_excel() to write our results into a spreadsheet.

Generating Math Tests with Python

Auto-Generate Unique Tests

This is a script for generating a bunch of unique math tests from a “Test Template” and a spreadsheet containing test inputs and problem solutions.

In our Test Template we set the layout of our test and define our test problems. Our test problems will have variable placeholders (TestID, Question ID, VarA, etc.) that we will replace with data from our “Test Data” spreadsheet.

In our excel file, we random generate values for the A, B, and C variables (using the =RANDBETWEEN() function) and clearly identify which Question, Equation, and Test ID they correspond to. In the Excel file, we’ll calculate solutions using the input data and equation listed for each entry.

Next, we can run our script. This is dependent on the docx (Note: pip install python-docx), docx2txt, re, pandas, and tkinter libraries.  Forms will pop-up prompting you for the Test Template and Test Data files.

Creates unique test documents with data
taken from a DataFrame (which is populated from an excel file).

Input: Test Template (Word Document).  Test Data (Excel File)
Output: 20 Unique Tests (Test Data)
#Import modules
import docx
import docx2txt
import pandas as pd
import re
from tkinter import Tk
from tkinter import filedialog


#Define "Test" template
template_file=filedialog.askopenfilename(title="Please select Word template")
testdata_file=filedialog.askopenfilename(title="Please select Test Data spreadsheet")

#Read file data

#Produce 20 unique tests
for i in range(20):
    #Add data for 10 unique questions
    for j in range(10):
        #Define replacement dictionary
        rep=dict((re.escape(k),v) for k, v in rep.items())
        if j==0:
            new_text=pattern.sub(lambda m: rep[re.escape(],template_text,count=4)
            new_text=new_text.replace('TestID','Test #' + str(i+1))
            new_text=pattern.sub(lambda m: rep[re.escape(],new_text,count=4)
    #Create and save new test document
    test_doc.add_paragraph(new_text)'C:\Users\Craig\Documents\Python Scripts\Test #'+str(i+1)+'.docx')

After the files have been selected, the script reads the Test Template text and loads the Test Data into a DataFrame. We then loop through the Test Data and produce 20 unique test documents by substituting the placeholder variables with values from the Test Data spreadsheet. Each test document is clearly labeled and we can use our original Test Data as our answer key.

Thanks to Andrew Clark for his code for replacing multiple text strings.

Reading & Writing Excel Data with Python

Using pandas to read/write data in Excel.

In this post we’re going to explore how easy it is to read and write data in Excel using Python.  There’s a few different ways to do this.  We’re going to use pandas.  The pandas DataFrame  is the main data structure that we’re going to be working with.


The sample Excel data we’ll be using is available on Tableau’s Community page.

To load a single sheet of the Excel file into Python, we’ll use the read_excel function:

import pandas as pd
sales_data=pd.read_excel(r'C:\Users\Craig\Downloads\Sample - Superstore Sales (Excel).xls')

This loads one tab of the spreadsheet (.xls, .xlsx, or .xlsm) into a DataFrame.

In fact, if we didn’t want to download the Excel file locally, we can load it into Python directly from the URL:


Note that we can load specific sheets (sheetname), grab specific columns (parse_cols), and handle N/A values (na_values) by using the optional keyword arguments.

To load all of the sheets/tabs within an Excel file into Python, we can set sheetname=None:

sales_data_all=pd.read_excel(r'C:\Users\Craig\Downloads\Sample - Superstore Sales (Excel).xls', sheetname=None)

This will return a dictionary of DataFrames – one for each sheet.


Writing existing Python data to an Excel file is just as straightforward.  If our data is already a DataFrame, we can call the pd.DataFrame.to_excel(‘filename.xlsx’) function.  If not, we can just convert the data into a DataFrame and then call to_excel.

import pandas as pd
import numpy as np

This will work for the .xls, .xlsx, and .xlsm.  Pandas also writer functions such as to_csv, to_sql, to_html, and a few others.

To write data on multiple sheets, we can use the pd.ExcelWriter function as shown in the pandas documentation:

with pd.ExcelWriter('filename.xlsx') as writer:
    df1.to_excel(writer, sheet_name='Sheet1')
    df2.to_excel(writer, sheet_name='Sheet2')

Quick Data Grabs

Try experimenting with the

pd.read_clipboard() #and

functions to quickly transfer data from Excel to Python and vice-versa.

Thank you, pandas, for creating and maintaining excellent documentation.

Creating Images with PyQRCode

Mass generation of QR codes with Python.

This is a script for taking a list of URLs from a spreadsheet and generating a captioned QR code for each entry.

Specifically, the script reads the ‘LongURLs‘ input file, shortens the URLs, creates QR Codes, adds captions, and saves each QR code as a .PNG image file.

We shorten the URLs to reduce the complexity of the QR code, which makes it less likely to become unreadable from printing imperfections and dirt smudges.

We’ll use:

1. Numpy
2. Pandas
3. PyQRCode
4. pyshorteners
5. PIL
6. PyPNG

We load our URLs and IDs (captions) using the LongURLs template.

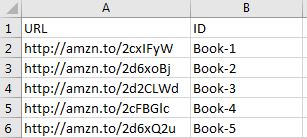

LongURLs Template

Next, we run the script and our QR codes will be output as PNG files in the same directory as our script.

Email links (such as “”) can be used as input URLs, but you’ll need to disable the ValueError:’Please enter a valid url’ that pyshorteners will raise.

import numpy as np
import pyqrcode
import pandas as pd
from pyshorteners import Shortener
from PIL import ImageFont
from PIL import Image
from PIL import ImageDraw

DF = pd.DataFrame(pd.read_excel(r'C:\Users\Craig\Documents\Python Scripts\LongURLs.xlsx',

ShortURL=np.array(LongURL, dtype='str')

for i in range(0,len(LongURL)):
    code.png(ID[i] + '.png', scale=6, module_color=[0,0,0,128],quiet_zone=7)

    #Adds caption[i] + '.png')
    font = ImageFont.truetype("ariblk.ttf", 20)
    draw.text((xcor,245),str(ID[i]),font=font)[i]) + '.png')


With pyshorteners, we have the option of using a bunch of different URL shorteners – in this case we used TinyURL.  See the pyshorteners github for a full list.

The font of your caption can be adjusted by taking the desired font’s .tff file (found in Control Panel > Appearance and Personalization > Fonts), copying it into the same folder as your script, and updating line 25.

You might need to adjust the “xcor” value (based on the length of your IDs) to get your caption centered under the QR image.  If your ID lengths are all different, consider adding a few lines of code to detect the ID length and update “xcor” dynamically.

Finding Words with PyPDF2

Find all instances of words in a PDF with Python’s PyPDF2 library.

This is a script for finding all instances of a given search word (or multiple search words) in a PDF.

For our example, we’ll be using a PDF of Romeo and Juliet.  In this case, our search terms are “Romeo” and “Juliet” (search is not case-sensitive).

import PyPDF2
import re




with open('FoundWordsList.csv', 'w') as f:
    f.write('{0},{1}\n'.format("Sheet Number", "Search Word"))
    for word in searchwords:
        for page in range(number_of_pages):
            words_start_pos[page]=[dwg.start() for dwg in re.finditer(word, pages_text[page].lower())]
            words[page]=[pages_text[page][value:value+len(word)] for value in words_start_pos[page]]
        for page in words:
            for i in range(0,len(words[page])):
               if str(words[page][i]) != 'nan':
                    f.write('{0},{1}\n'.format(page+1, words[page][i]))
                    print(page, words[page][i])

We run the script and get an output that shows each instance of each search word and the associated PDF page number:

This script can be used for a variety of other applications by updating the file path (line 4) and the search terms (line 12).

A few ideas for modification include:

  • Frequency counts of words in books/lyrics (ATS has an awesome frequency count graph generator)
  • Finding reference drawing numbers in a document
  • Identify search terms by prefixes rather than whole words
  • Identifying sheets that need to be updated
  • Using glob to iterate through multiple files

How else would you modify this script?  Let me know!

Thanks for reading!

Special thanks to these sources:

Automate the Boring Stuff with Python
ritesh_shrv on Stack Overflow
